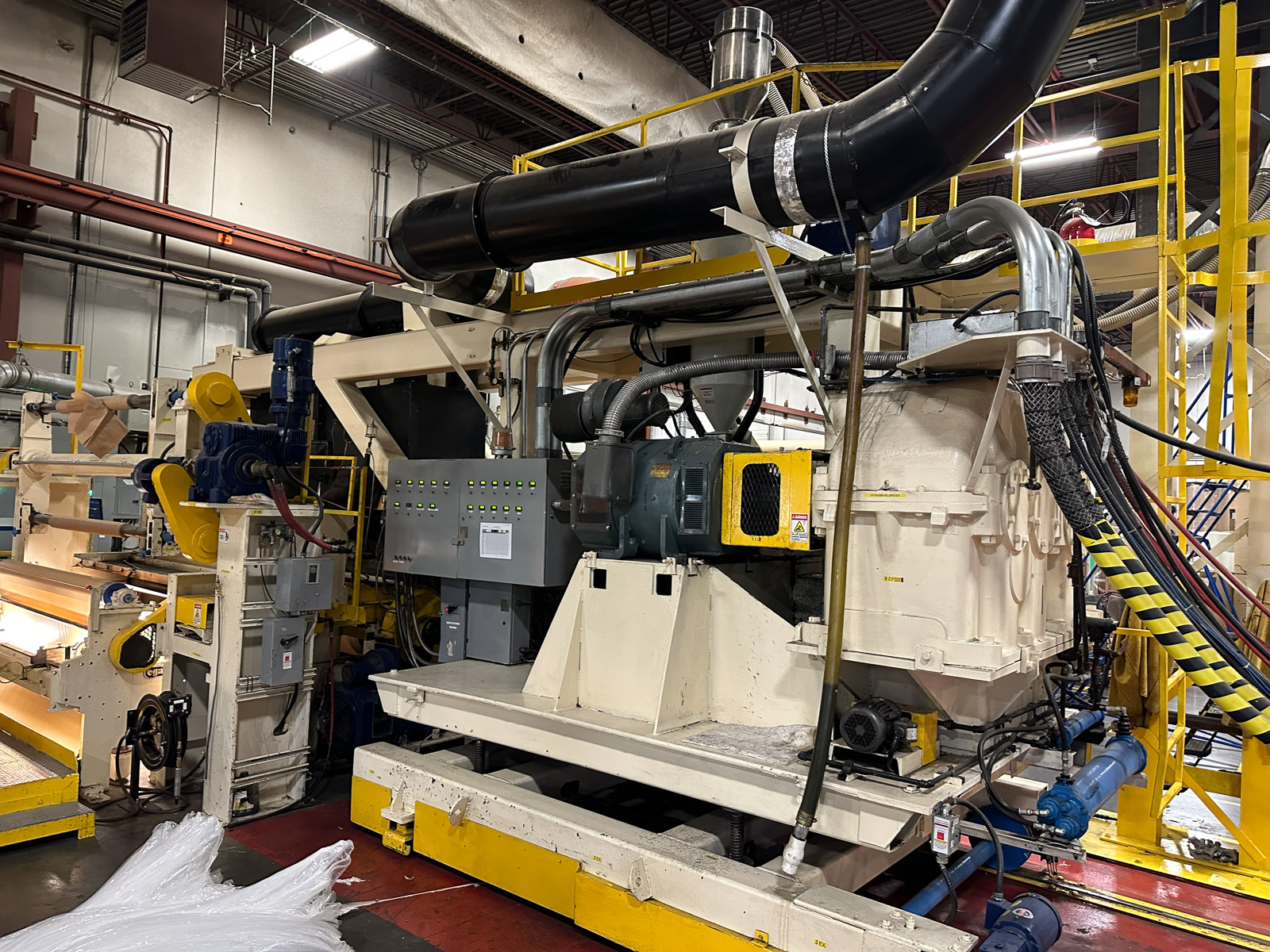

78” Davis Standard Autoflex Extrusion Coating Laminating Line, Year 2000

SKU: 467204
78” Davis Standard Autoflex Extrusion Coating Laminating Line, Year 2000. Features 80” Davis Standard H40C Autoflex Extruder; 190 MPM Max Line Speed; Includes: Primary and Secondary Unwinds, Flynn Burner Preheating, AEC Blending, 80” Face Laminating Station, Downstream Flexo Station, Profile Control, Tidland Slitters, QC Corona Treatment, Airshaft Drum Winder with Manual Splice and Core Puller.

Composed of:

(1) 5000# Hydraulic Lift Table for Roll Loading
(1) Primary Unwind: Dual Spindle Turret 3", 4", 6" Core Diameter, Semi-Manual Splicing Unit, Manual Web Guide, and Load Cell Tension Control.
(1) Flynn Burner Gas Flame Pre-Heat Unit
(1) Davis Standard Extruder with 80” Die, H40C Extruder with Auto-flex VI Lip Control, 6” Diameter Screw, Manual External Deckles, Forced Air Cooled, Electrically Heated Die Bolts.
(1) AEC 6 Blending Station with Dynesco EH-60 Screen Changer
(1) 80” Face x 24” Diameter Coater/Lamination Station
(1) Downstream Flexo Printer / Coater
(1) Model Matte 42 RA Mirror Pocket 40 RA Thermo Fisher Profile Control
(1) Crane Secondary Unwind Loading Unit
(1) Secondary Unwind: 2-Position Turret Unwinder with Airshafts, Manual Splicing Unit and Electric Clutch Tension Control.
(1) Tidland Slitting/Edge Trim Knives
(1) QC Treator 7.5 KW Corona Treater
(1) Drum Winder with Manual Splice, Edge Trim Baler, Airshafts and Core Puller Assembly
