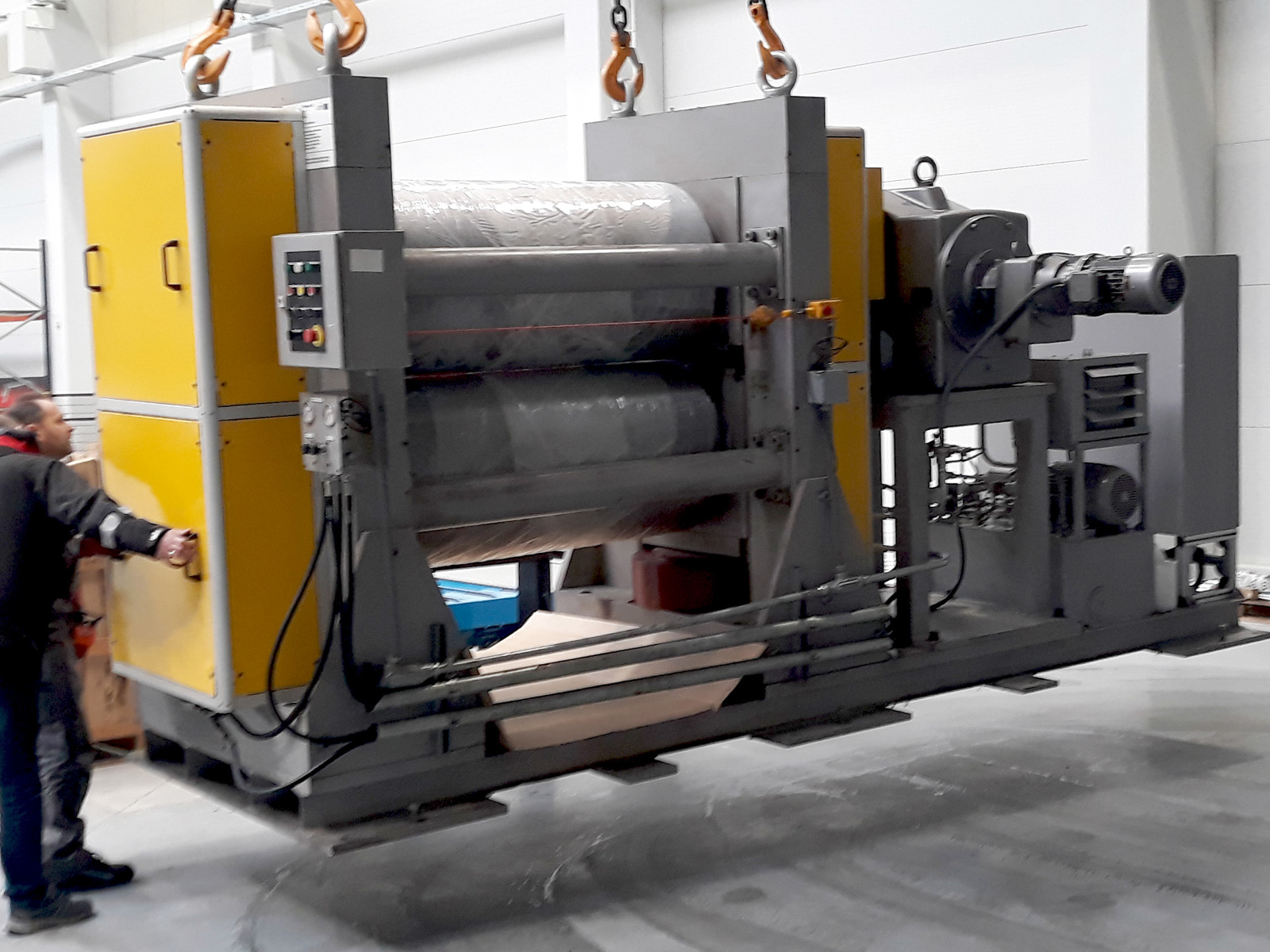

58” Standex Rotary Metal Embosser

SKU: 467040
58” Standex Rotary Metal Embosser. Standex Engraving Mark 250 SP Rotary Hydraulic Metal Embosser. Designed to Run as Sheet Fed or Continuous operation. 54" Maximum Material Width. Designed for Metal Embossing, Aluminum or Stainless Steel. The Embosser is a Stand-Alone Machine. Manufactured 2015. Like new condition.
Machine Specifications:
Speed:
Tension:
Electricals:
Nip Pressure:
6 FPM
0 lb.
400V/3Ph/50Hz
225 Tons

Material Specifications:

Material:
Yield Strgth:
Thickness:
Matl. Width:
SS 304 / AL
45,000 PSI
0.4 - 1.5mm
1000 - 1370mm

Includes:
One (1) Set of Engraved Embossing Rolls; 58" Face X 26" Diameter Matched, Hardened Steel Embossing Rolls Manufactured to Fit Mark 250 SP Embosser
One (1) Precision Machined Base Plate
Two (2) Precision Machined Side Frames
Two (2) Side Frame Tie Bars
Two (2) Precision Machined Headers
Four (4) Bearing Blocks Complete with Bearings, Seals, Lock Nuts, Lock Washer, and Spacers
Four (4) Vertical Adjusting Screws with Disc-Dial Indicators for Nip Opening Positioning
One (1) Hydraulic Unit
One (1) Hydraulic Manifold
Two (2) Double Acting Hydraulic Cylinders
One (1) Top Roll Cover
One (1) In-Feed Nip Guard
One (1) Safety Limit Switch
One (1) 3 HP AC Drive System Including, Gear Box, Drive Stand and Coupling. Unit Speed Manually Adjusted to Accept Sheet Fed Material.

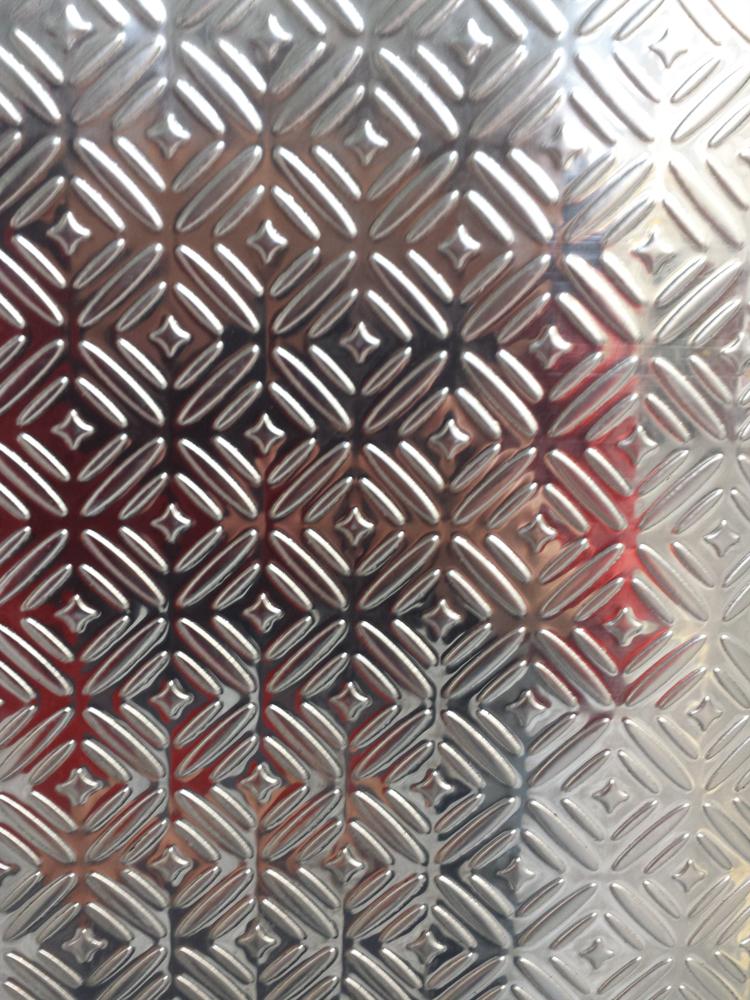

Embosser for Aluminum or Stainless Steel

Products specifications
Speed6 Feet/Min
Width58 Inch Roll / 54" Material
Pressure225 Tons / 8,333 PLI
Equipment ClassMetal Converting Equipment
Year2015
