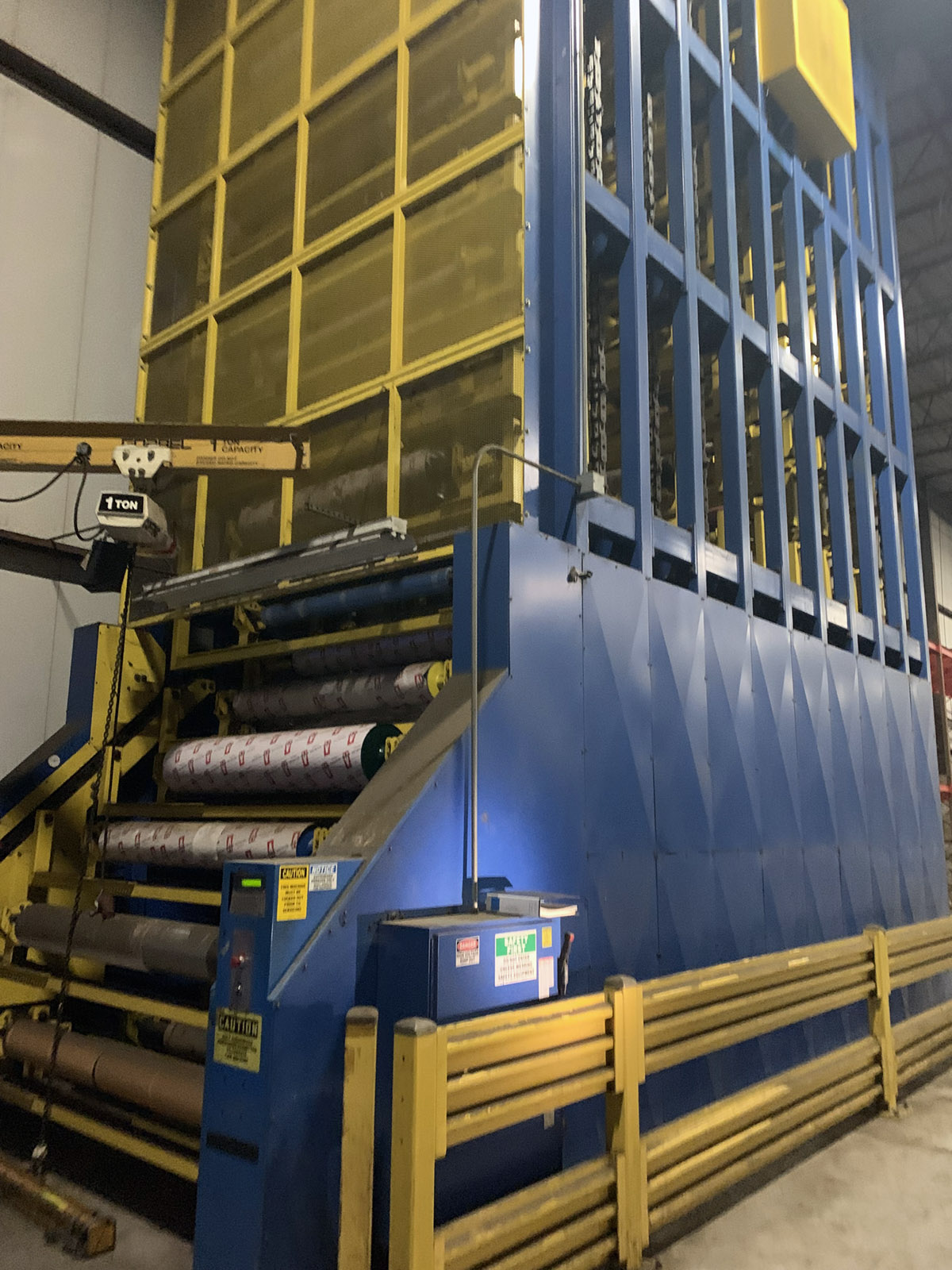

48” – 72” Roll Carousel Storage System

SKU: 467170

72” Roll Storage Carousel for 158 Rolls of varying widths and diameters built by Fab-Tech in 2001. Capacity: (158) Carriages with Avg. load of 500 lbs. per carrier. Total weight capacity is 79,000 lbs. with a Max 677 lbs. per carriage. Total (158) Rolls Maximum. Retrieval Time (avg.): 4 minutes 3 seconds. Roll Widths: 48” – 72”; Roll Diameters: 3.5” – 13.75”. Year 2001. Machine Dimensions: 32’-10” H x 26’-5” D x 13' W

Qty:

Overview
Reviews
Contact Us

Specifications:

Machine Type:	Five (5) Loop VerZcal Single Sprocket Industrial Carousel with load/unload nose.
Motors:	Four (4) @ 5 HP each with helical beveled geared drives.
Electricals:	460V / 3Ph / 60Hz
Controls:	Standard up / down push-bubon with emergency stop.
Drive Chain:	24-ton chain (7:1 staZc; 5:1 dynamic (safety factor)).
Side Sheeting:	Approximately 116” high.
Front Guard:	Mesh or bar guards to within 98” of the floor.
Rear Guard:	Full length as required.
Emergency Stop:	Key released E-Stop.
