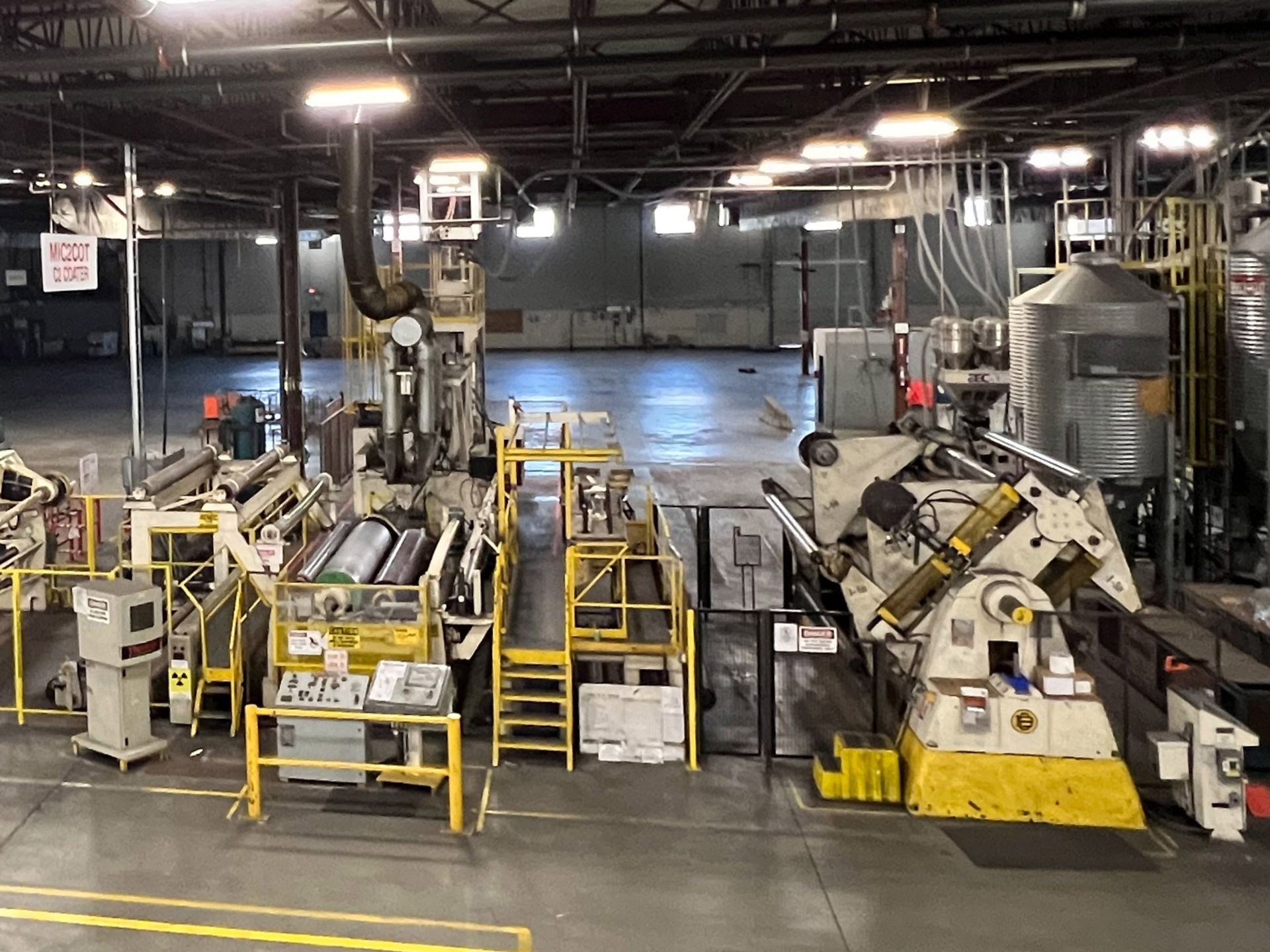

116” Black Clawson Extrusion Coating Lamination Line

SKU: 467200
116” Black Clawson Extrusion Coating Lamination Line with 125” BC Ultraflex Extruder with 6” Diameter Screw. 120" PE Max Finished Width; 190 MPM Max Line Speed; 900 kg Max Extruder Output. Includes Primary and Secondary Manual Splice Dual Spindle Unwinds; 130” Face Laminating Station; Corona Treater; Airshafted Drum Winder and Core Puller Assembly; Chilled Water Circulation System with Heat Exchangers.

116” COATER LAMINATOR – SPECIFICATIONS:

(1) PRIMARY UNWINDING:
130” Width x 60” Diameter
5000 # Hydraulic Lift Table for Roll Loading
Dual Spindle Turret 3", 4", 6", 8" Core Diameter
Manual Splicing Unit
No Web Guidance
Magpower Load Cell Tension Control

(1) BLACK CLAWSON EXTRUDER:
AEC Six (6) Input Blending Station Gravitrol Feed Rate Control
900 kg Capacity
6-inch Diameter Screw, Refurbished 2015
(1) Dynesco EH-60 Screen Changer #1
(1) Die 125-Inch Ultraflex Unit:
Manual Die Lip Adjustment and External Deckles

(1) COATER/LAMINATION STATION #1:
130-inch Face x 24" Diameter Lamination Roll
Model Matte 115 RA Finish – Gloss Roll as Spare
Thermo Fisher Krypton Gauging
Manual Control

(1) SECONDARY UNWINDING:
124” Face x 40” Diameter
S&S Turret Dual Spindle Unwinder Manual Splicing Unit
No Web Guidance
Magpower Load Cell Tension Control

(1) SLITTING/EDGE TRIM SYSTEM:
Slitter Knife Edge Trim Winder

(1) QC TREATOR 7.5 KW CORONA TREATMENT

(1) SINGLE DRUM REEL WINDER
60” Diameter
6” Diameter Airshafts
Manual Splice and Core Puller Accessory

(1) TRIM REOVAL SYSTEM
PAC Chopper and Trim Blower with Dust Collector Selco Automatic Tie Baler
Any available drawings, electrical / mechanical are included. Received excellent maintenance by Fortune 500 owner.

Location: Western Canada

Products specifications
Equipment ClassCoating Laminating Printing
# of UnwindsTwo (2)
